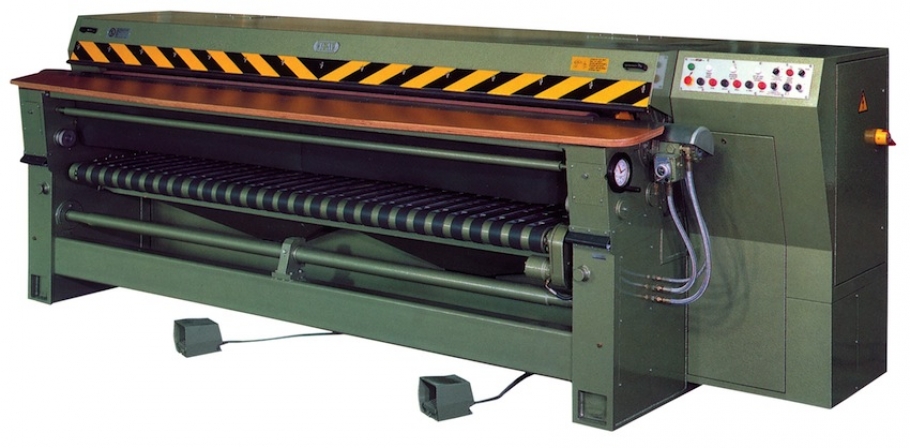

THROUGH-FEED FULL HYDRAULIC BUFFING MACHINE, WITH OSCILLATING CYLINDER MOD.S.2400 S.3000

THROUGH-FEED OPEN-END FULL HYDRAULIC BUFFING MACHINES, WITH OSCILLATING CYLINDER

complete with fittings, with low conveyor, with automatic hide-braking device, with electric apparature, with safety device, with all electric motors, without electroexhauster.

Characteristics:

  • Support structure, in welded steel, comprising boxed sides and connecting beams.
  • Steel buffing cylinder offering large diameter and double stabilisation and balancing process, and turning on self-adjusting double-bearing supports. Emery paper with standard width 610 mm. is spiral-wound onto this roller and held at the correct tension by an automatic stretch-compensator device.
  • Support roller with special rubber coating, whose hardness and type vary depending on the buffing procedure.
  • Mechanical drive for cylinder oscillating movement.
  • Hydraulic opening and closing with all components installed in protected positions, running on rolling bearings.
  • Possibility to drive the machine by means of two pedals when operating with two workers.
  • Opening and closing pedals selectable either for sensitive action of fixed positions.
  • Hydraulically operated feed system with speed continually adjustable from 0 to 28 m/1'.
  • Decimal regulation of thickness with read-off of value set.
  • Device operating on both sides providing rapid adjustment by 3 tenths in either direction of the position of the support-roller in relation to the buffing cylinder.
  • Automatic blending device both at beginning and at the end of each pass.
  • Upper hide-braking device allows continuous processing with no damage to the last section of the hide.
  • Total dust exhauster system with upper and lower suction intakes.
  • Hide conveyor belt with option of hide offload to front or rear, hydraulically operated with speed automatically varied in relation to feed speed.
  • Intrinsic operator safety devices throughout the processing zone with continual electronic monitoring of efficiency. The device opens the machine and stops the rollers by means of electro-magnetic disk brakes.
  • Electric housed in sealed cabinet with auxiliary voltage 24 Volts, complying with international safety standards.
  • Without electroexhauster.
Working width mm 2400
Power of main motor HP(Kw) 40 (30)
Pump motor power HP(Kw) 4 (3)
Floor space mm 1700x3950
Net weight Kg 4200
Gross weight with seapackage Kg 4800
Volume with seapackage m3 (mm) 13,8 (1900x4150xH1750)
Working width mm 3000
Power of main motor HP(Kw) 50 (37)
Pump motor power HP(Kw) 4 (3)
Floor space mm 1700x4550
Net weight Kg 4800
Gross weight with seapackage Kg 5500
Volume with seapackage m3 (mm) 15,8 (1900x4750xH1750)
