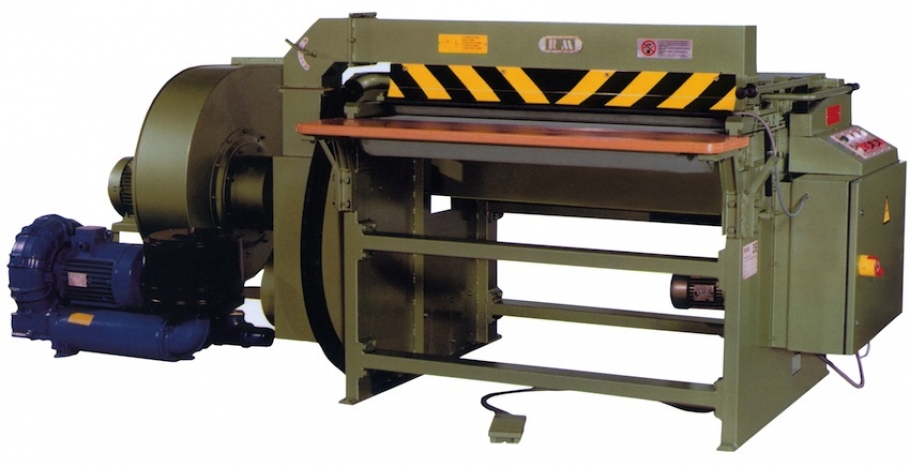

THROUGH-FEED THREE AIRBLASTS DEDUSTING MACHINE WITH DEPRESSION SYSTEM EQUIPPED WITH FEED PLATE MOD.DE123

THROUGH-FEED THREE AIRBLASTS DEDUSTING MACHINES WITH DEPRESSION SYSTEM EQUIPPED WITH FEED PLATE

complete with fittings, with electric apparature also for depressure generator and for blower, with transport speed variation, electric motors, safety device.

Characteristics:

  • Transport of hide held in position on conveyor band by depressure
  • Three airjets and five suction grids.
  • Rapid lifting of upper equipment.
  • Bands stabilized by wide-diameter cylinders.
  • Band speed continually adjustable from 11 to 45 m/1'.
  • Barrier safety device acting on the whole face of the machine and band brake pedal.
  • Electrical equipment housed in air-tight cabinet with auxiliary voltage of 24 Volts, in compliance with international safety standards.

Machine is completed with fittings, with electric apparature also for depressure generator and for blower, with transport speed variation, electric motors, safety device.
ELECTROEXHAUSTER/DEPRESSURE GENERATOR complete with electric motor, granting a positive transport of the skins on the conveyor and dust evacuation.
BLOWER complete with electric motor, safety valve, silencer and filter.
Without dedusting filter.
Are excluded both for the blower and the depressure generator, electric connection cables and connection pipes.

Working width mm 1200
Band motor power HP(Kw) 1 (0,75)
Blower motor power HP(Kw) 12,5 (9,2)
Extractor/filter motor power HP(Kw)  10 (7,5)
Working width mm 1600x1200
Net weight Kg 1250
Gross weight with seapackage Kg 1600
Volume with seapackage m3 (mm) 9,6 (1900x2900xH1750)
