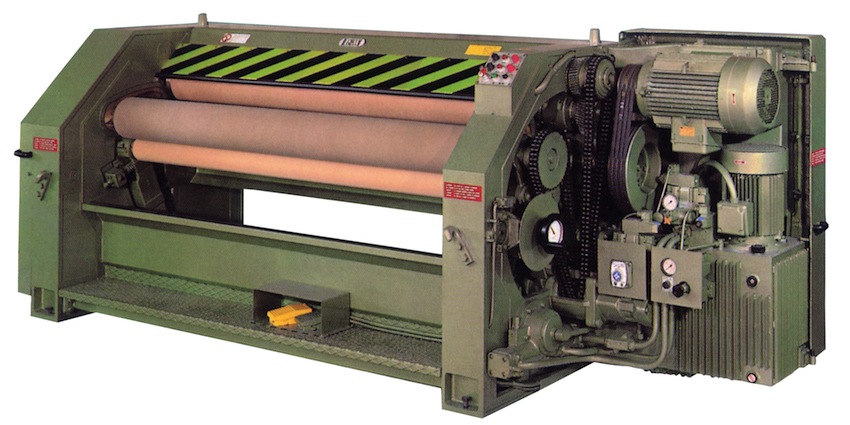

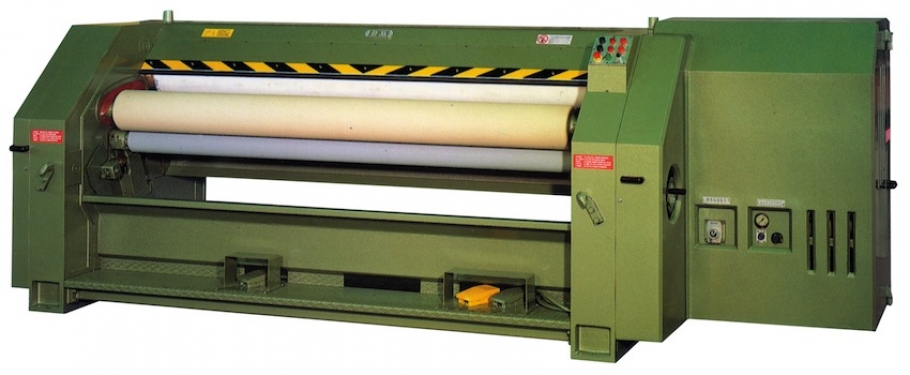

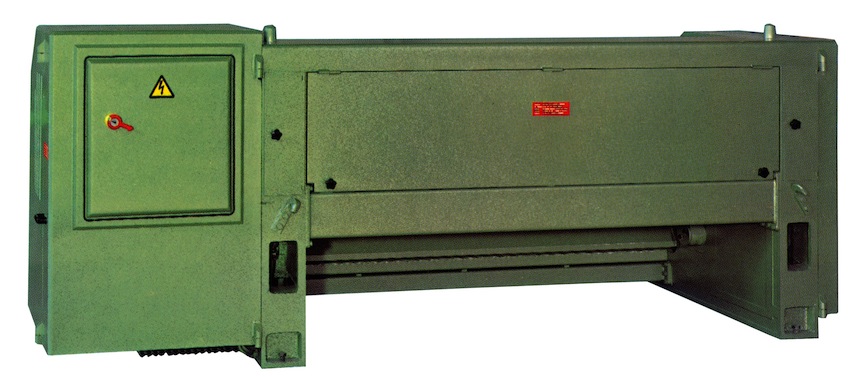

HYDRAULIC COMBINED SETTING OUT AND SAMMYING MACHINE MOD.RA.1600 RA.1800 RA.2100 RA.2400

Media

HYDRAULIC SETTING OUT AND SAMMYING MACHINES WITH TOP ROLLER COVERED BY A FLOATING FLET SLEEVE; SAMMYING PRESSURE ADJUSTABLE UP TO 7.000 KG (10.000 KG FOR MODEL RA.2400)

complete with fittings, with electric apparature, with three safety devices, with hydraulic feed reverse device and with all electric motors.

Characteristics:

  • Very sturdy carrying structure formed by side frames in cast iron joined by steel girders.
  • Large diameter slicker roller in treated quality steel mounted on self-aligning roller bearings supports.
  • Electronic balancing of the slicker roller before and after slicker assembling.
  • Slickers in AISI 316 steel thus granting a long life of the cutting edge.
  • Hydraulically control transport for opening and closing the machine with adjustable limit stop shock absorbers.
  • Hydraulic control transport with continuos adjustable speed from 20 to 34 m/1'.
  • Hydraulic transport reversing device thus enabling the recovery of the heaviest parts of the hides without having to open the machine for a second feed-in.
  • Independent-pump circuit for the hydraulic pressure cylinders of top roller thus granting a perfect and constant working pressure independently from the machine motions.
  • Decimal thickness adjustment with reading of the pre-set value.
  • Control members for the opening and closing located in the inside of side frames, in a water-protected position and rotating on rolling bearings
  • Opening and closing pedal both for sensitive action and for fixed controls.
  • Barrier safety device acting on the whole face of the machine.
  • Second infra red safety device.
  • Sliding case of slicker cylinder to eliminate the risk of accidental contact with the hands.
  • Built-in electric equipment in waterproof cabinet with auxiliary voltage 24 Volts in compliance with international security standards.
Working width mm 1600
Power of main motor HP(Kw) 15 (11)
Pumps motor power HP(Kw) 12,5 (9,2)
Floor space mm 1400x3300
Net weight Kg 4300
Gross weight with seapackage Kg 4900
Volume with seapackage m3 (mm) 12 (1750x3600xH1900)
Working width mm 1800
Power of main motor HP(Kw) 20 (15)
Pumps motor power HP(Kw) 12,5 (9,2)
Floor space mm 1400x3500
Net weight Kg 4650
Gross weight with seapackage Kg 5300
Volume with seapackage m3 (mm) 12,6 (1750x3800xH1900)
Working width mm 2100
Power of main motor HP(Kw) 20 (15)
Pumps motor power HP(Kw) 12,5 (9,2)
Floor space mm 1400x3800
Net weight Kg 5000
Gross weight with seapackage Kg 5700
Volume with seapackage m3 (mm) 13,6 (1750x4100xH1900)
Working width mm 2400
Power of main motor HP(Kw) 25 (18,5)
Pumps motor power HP(Kw) 15 (11)
Floor space mm 1400x4220
Net weight Kg 5500
Gross weight with seapackage Kg 6300
Volume with seapackage m3 (mm) 15 (1750x4520xH1900)
