HYDRAULIC SHAVING MACHINE MOD.F.1300 F.1500

Eventuale didascalia immagine Eventuale didascalia immagine

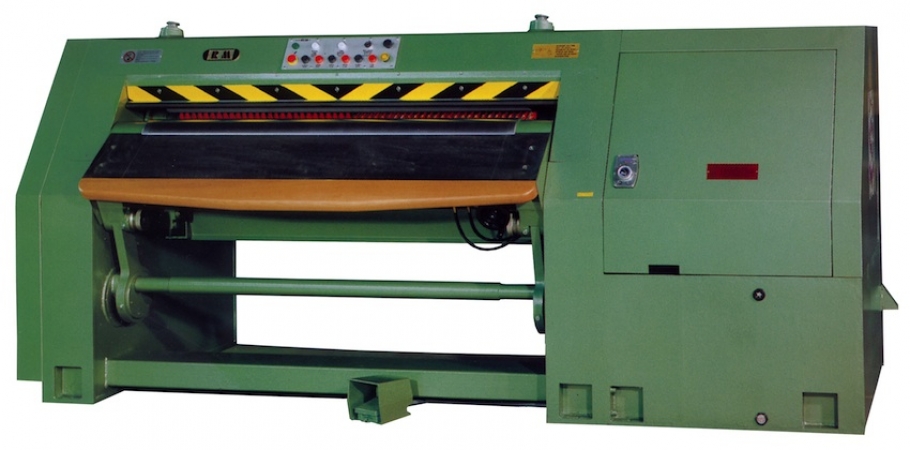

HYDRAULIC SHAVING MACHINES

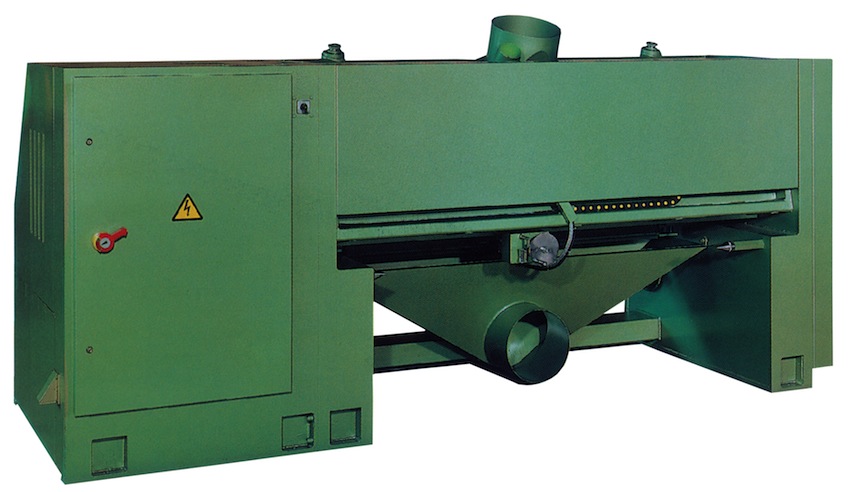

Type for dry complete with fittings, with electric apparature, safety device, with all electric motors, with top suction hood, bottom suction hood, emery wheel dust suction hood.
Are excluded pipes, electroexhausters and dedusting filters.

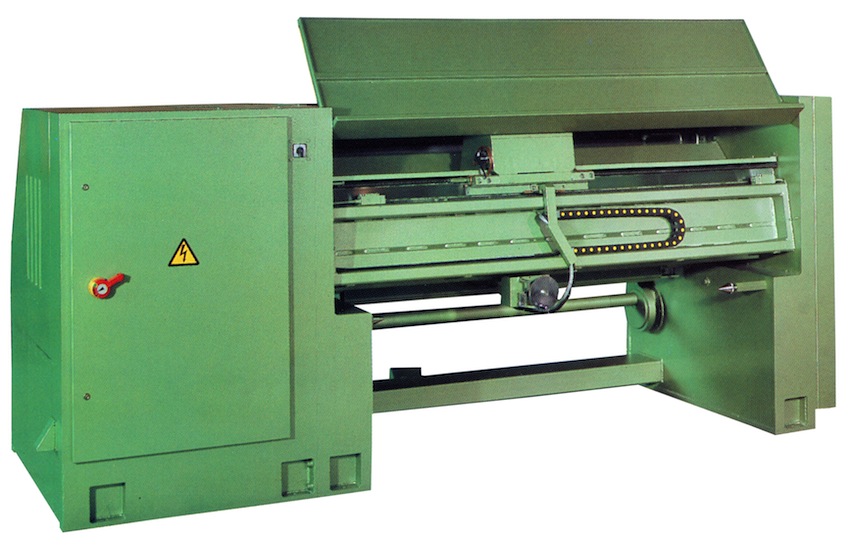

Type for wet complete with fittings, with electric apparature, safety device, with all electric motors.

Characteristics:

  • Large diameter blade cylinder in high quality treated steel mounted on supports with adjustable conical bearings, and belt driven.
  • Electronic balancing of the blade cylinder before and after the blades are mounted.
  • Speed adjustable, hydraulic opening and closing with all rotating components on rolling bearings.
  • Opening and closing pedal selectable either by sensitive action or fixed position.
  • Hydraulic controlled transport with continuous speed adjustment from 0 to 28 m/1'.
  • Decimal high-precision thickness adjustment.
  • Bilateral device for rapid adjustment of + 3 decimal places, for positioning the support cylinder in relation to the blade cylinder.
  • Device for rapid adjustment of fractional variation for thickness during a pass with values which can be programmed by + 3 decimal places.
  • Automatic device for shading at the beginning and the end of each pass.
  • Upper clamp cylinder for hides with adjustable hydraulic thrust guaranteeing secure transportation without any special effort required by the operator.
  • Turnaround device for the support cylinder facilitates the return of the hide which can be pedal or pushbutton controlled.
  • Hydraulically controlled fan is speed adjustable.
  • Independent pump circuit for the translation of the sharpening carriage prevents its interfering with other machine movements.
  • Operator protection system with intrinsic safety for all work areas, continuously controlled electronically for system efficiency.
  • Electrical equipment built-in-to the sealed cabinet with auxiliary voltage of 24 Volts complies with international safety standards.
  • Large diameter blade cylinder in high quality treated steel mounted on supports with adjustable conical bearings, and belt driven.
  • Electronic balancing of the blade cylinder before and after the blades are mounted.
  • Speed adjustable, hydraulic opening and closing with all rotating components on rolling bearings.
  • Opening and closing pedal selectable either by sensitive action or fixed position.
  • Hydraulic controlled transport with continuous speed adjustment from 0 to 28 m/1'.
  • Decimal high-precision thickness adjustment.
  • Bilateral device for rapid adjustment of + 3 decimal places, for positioning the support cylinder in relation to the blade cylinder.
  • Device for rapid adjustment of fractional variation for thickness during a pass with values which can be programmed by + 3 decimal places.
  • Automatic device for shading at the beginning and the end of each pass.
  • Upper clamp cylinder for hides with adjustable hydraulic thrust guaranteeing secure transportation without any special effort required by the operator.
  • Turnaround device for the support cylinder facilitates the return of the hide which can be pedal or pushbutton controlled.
  • Hydraulically controlled fan is speed adjustable.
  • Independent pump circuit for the translation of the sharpening carriage prevents its interfering with other machine movements.
  • Complete extraction system for dust with upper and lower suction.
  • Operator protection system with intrinsic safety for all work areas, continuously controlled electronically for system efficiency.
  • Electrical equipment built-in-to the sealed cabinet with auxiliary voltage of 24 Volts complies with international safety standards.





Working width mm 1300
Power of main motor HP(Kw) 40 (30)
Pump motor power HP(Kw) 7,5 (5,5)
Floor space mm 1350x3200
Net weight Kg 3800
Gross weight with seapackage Kg 4400
Volume with seapackage m3 (mm) 9,8 (1600x3400xH1800)

Working width mm 1500
Power of main motor HP(Kw) 40 (30)
Pump motor power HP(Kw) 7,5 (5,5)
Floor space mm 1350x3400
Net weight Kg 4000
Gross weight with seapackage Kg 4600
Volume with seapackage m3 (mm) 10,4 (1600x3600xH1800)
