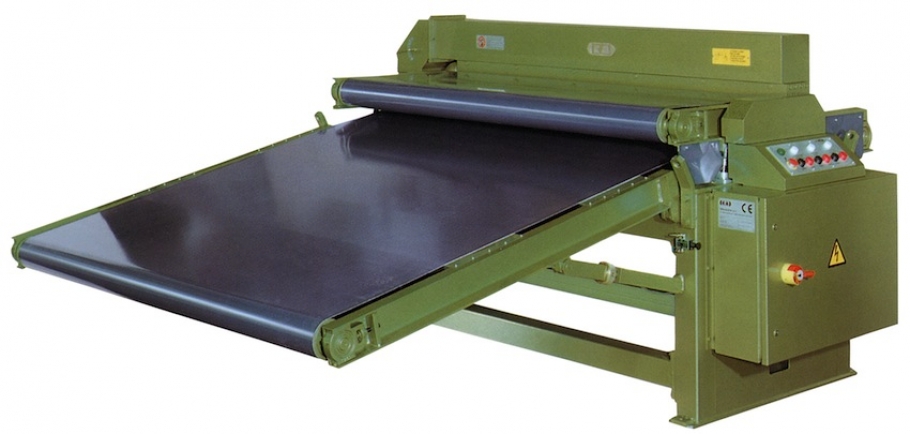

THROUGH-FEED AIRBLAST DUSTING MACHINES REALIZED IN TWO VERSIONS:
- Mod. DEC: THROUGH-FEED DUSTING MACHINE WITH EXTENDED BAND FOR COLLECTION, FROM THE BUFFING MACHINES, OF HIDE SUBJECTED TO CONTINUOUS BUFFING
- Mod. DE: THROUGH-FEED DUSTING MACHINE WITH FEED TABLE FOR HIDES THAT CANNOT BE SUBJECTED TO CONTINUOUS BUFFING
complete with fittings, with electric apparature, with transport speed variator, electric motor, without electroexhauster and without dedusting filter.
Characteristics:
- Transport of hides hel in position on conveyor band by depressure.
- Three airjets and five suction grids.
- Rapid lifting of upper equipment.
- Bands stabilized by wide-diameter cylinders.
- Band speed continually adjustable from 10 to 50 m/1'.
- Barrier safety device acting on the whole face of the machine and band brake pedal (for Mod. DE only).
- Electrical equipment housed in air-tight cabinet with auxiliary voltage of 24 Volts, in compliance with international safety standards.
BLOWER complete with electric motor, safety valve, silencer and filter. Are excluded electric connection cables and connection pipes.
| Working width | mm | 1200 |
| Band motor power | HP(Kw) | 2 (1,5) |
| Blower motor power | HP(Kw) | 15 (11) |
| Extractor/filter motor power | HP(Kw) | 7,5 (5,5) |
| Floor space | mm | 1350x2150/1800x2150 |
| Net weight | Kg | 1440 |
| Gross weight with seapackage | Kg | 1850 |
| Volume with seapackage | m3 (mm) | 14,2 (1800x4150xH1900) |
| Working width | mm | 1500 |
| Band motor power | HP(Kw) | 2 (1,5) |
| Blower motor power | HP(Kw) | 20 (15) |
| Extractor/filter motor power | HP(Kw) | 10 (7,5) |
| Floor space | mm | 1350x2450/1800x2450 |
| Net weight | Kg | 1680 |
| Gross weight with seapackage | Kg | 2150 |
| Volume with seapackage | m3 (mm) | 15,2 (1800x4450xH1900) |
| Working width | mm | 1800 |
| Band motor power | HP(Kw) | 2 (1,5) |
| Blower motor power | HP(Kw) | 25 (18,5) |
| Extractor/filter motor power | HP(Kw) | 10 (7,5) |
| Floor space | mm | 1350x2750/1800x2750 |
| Net weight | Kg | 1820 |
| Gross weight with seapackage | Kg | 2350 |
| Volume with seapackage | m3 (mm) | 16,2 (1800x4750xH1900) |
| Working width | mm | 2400 |
| Band motor power | HP(Kw) | 3 (2,2) |
| Blower motor power | HP(Kw) | 30 (22) |
| Extractor/filter motor power | HP(Kw) | 15 (11) |
| Floor space | mm | 1350x3350 /1800x3350 |
| Net weight | Kg | 2300 |
| Gross weight with seapackage | Kg | 2900 |
| Volume with seapackage | m3 (mm) | 18,3 (1800x5350xH1900) |
| Working width | mm | 3000 |
| Band motor power | HP(Kw) | 3 (2,2) |
| Blower motor power | HP(Kw) | 40 (30) |
| Extractor/filter motor power | HP(Kw) | 15 (11) |
| Floor space | mm | 1350x3950/1800x3950 |
| Net weight | Kg | 2790 |
| Gross weight with seapackage | Kg | 3500 |
| Volume with seapackage | m3 (mm) | 20,3 (1800x5950xH1900) |
